Deep Well 80G High Frequency Radar Water Level Transmitter Explosion-proof Level Sensor Gauge
Product Description:
Radar level measurement is a safe solution even under extreme process conditions (pressure, temperature) and vapors. Radar can also be used in hygienic applications for non-contact level measurement. Radar versions are available for different industries like for water/wastewater, the food industry, life sciences or the process industry. Various antenna versions for every kind of radar applications are available.
How it works
The extremely narrow microwave pulse emitted by the antenna on radar level instrument can travel at the speed of light and part of its energy. which is reflected off the surface of target medium, is received by the very same antenna.
The time lapse between pulse emission and reception by the antenna is proportional to the distance between the surface of target medium and the reference point on antenna．However.due to the fact that the electromagnetic wave is Transmitted at extremely high speed. which leads to the tiny time lapse (nanosecond level) and makes it difficult to be identified.

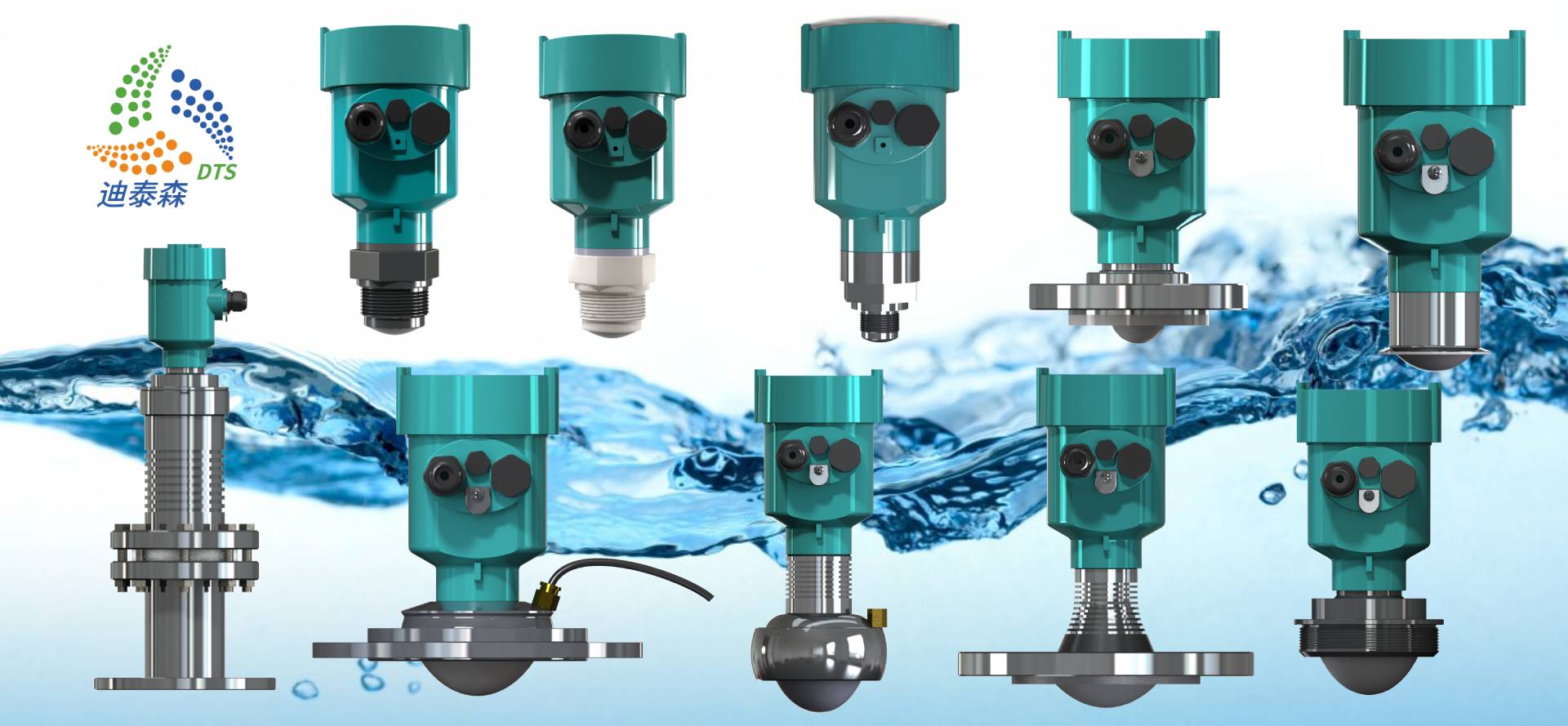

80 GHZ Radar Level Meter Level measuring tool tank liquid water monitoring measurement device cement silo Sensor Transmitter
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance - Swivelling mounting,Easily adjustable (up to ±10°)
- Air purge connection or Nitrogen purge connection,efficient cleaning.
Technical Parameters:
| Model | DTS-RD |
| Application | Liquid Bulk Solid Powder And Dust |
| Measuring Range | 120m |
| Frequency | 80GHz |
| Accuracy | ±2mm |
| Process Temperature | -40℃~+1200℃ |
| Process pressure | (-0.1~0.3)MPa |
| Process Connection | Flange from DN80 |
| Protection Class | IP67 |
| Signal output | 4…20mA/HART; RS485/MODBUS |
| Connection | Bluetooth/NB-iot/4G |
Applications:
This DTS-RD Radar Level Transmitter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips, Cement, Cement silo etc, all these could use DTS-RD to monitor the level.
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
